Double
Wire

Evolution

The revolution is the Evolution.

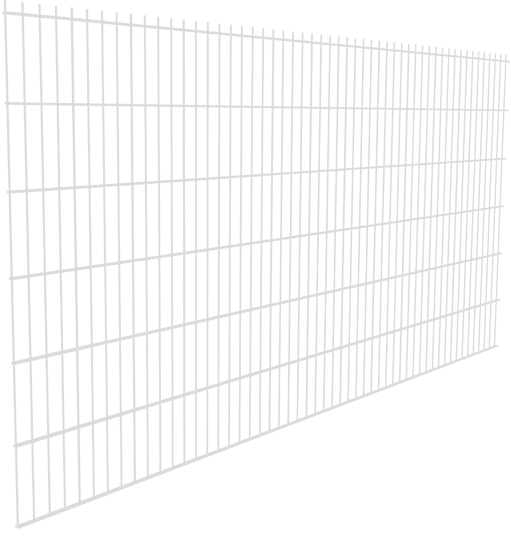

We have the perfect solution if you chain link fence needs to be changed. With our Evolution panels, you have the option to keep your current post and to add our modern fence system. Evolution is an excellent option for upgrading existing chain link projects.

Double wires resist vandalism
See-through panels
Difficult to cut and climb
Upgrade existing project
Hot-dipped galvanized

play_circle Evolution Installation Video

play_circle Double Wire Installation Video

list_alt Panel properties

download Downloads

image Image Gallery

palette Color Chart

Panel Properties

Panel	Standard Height		48 ⁷⁄₁₆", 72 ¹⁄₁₆", 95 ¹¹⁄₁₆" (1230 mm, 1830 mm, 2430 mm). Stackable
	Standard length		98 ⁵⁄₈" (2505 mm)
	Finish		Hot-dipped galvanized
Mesh	Spacing c/c		1 ³¹⁄₃₂" x 7 ⁷⁄₈" (50 x 200 mm)
Gauge	Horizontal wire		2 x 4 GA (5.72 mm)
	Vertical wire		1 x 6 GA (4.88 mm)
Post	Square post		Round post
	Dimensions	2" x 2" or 3" x 3" (50.8 x 50.8 mm or 76.2 x 76.2 mm)	Dimensions	Supplied by others
	Brackets	Universal brackets (±1 1/2" (38 mm) slot allowance) and tamper proof nut	Brackets	Eye-U-clamp for 2 ³/₈ (60.3 mm) and 3 ¹/₂ (88.9 mm) OD posts
	Caps	Square. Hot-dipped galvanized finish	Caps	Supplied by others
End-to-end connector	Used to link two panels directly with each other, between the posts
Available gates
	Height	48, 72 or 96 inches (122, 183 or 244 cm)
